A quoted handle set can mean a complete mortise lock, a retrofit unit, or an electronic handle paired with a separate deadbolt. By checking the box contents, door geometry, access features, battery plan and installation scope, you can identify what is supplied, what must be added and whether the lock will work on your door.
Key takeaways
- Confirm the mortise, strike plate, spindle and emergency-opening parts are included.
- Measure door thickness, edge bore, backset and handing before choosing the lock.
- Ask how many users, PINs, cards and fingerprints the system stores.
- Separate hardware, installation, batteries, warranty and support in the quotation.
What should be inside the box, and what is usually separate?

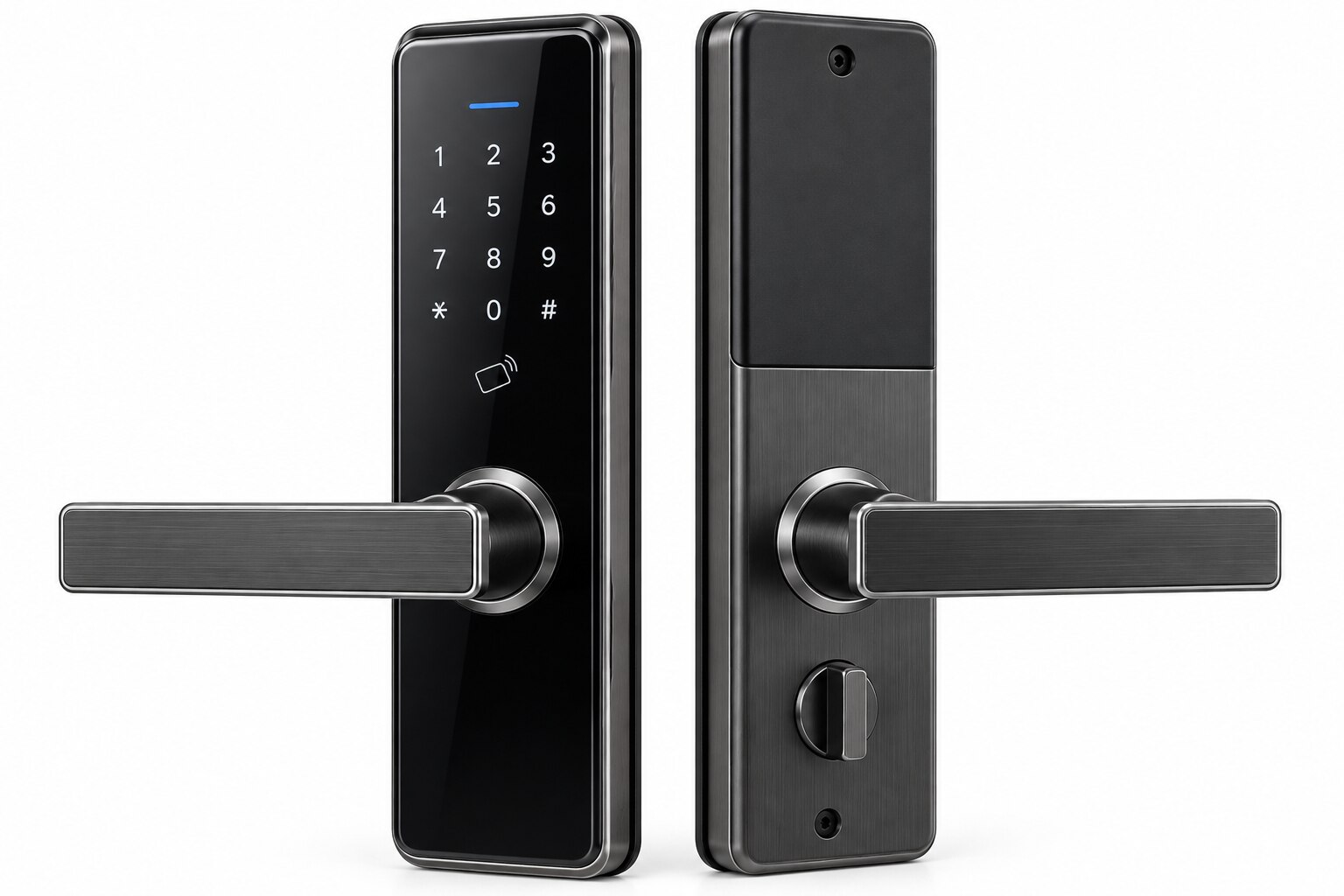

A complete mortise-type digital lock handle set in Pune normally includes the exterior handle and escutcheon, interior handle, proprietary lock body or mortise, strike plate and strike box, spindle, mounting screws, batteries, installation template and emergency-opening provision.
RFID cards or tags, emergency mechanical keys and the concealed override cylinder require confirmation because some models omit them.
Do not confuse three different products. A pull-handle lock may use a separate deadbolt instead of a lever mortise, while a retrofit electronic unit fits over an existing cylinder and may include no new mortise or cylinder.
Confirm whether the mortise, batteries, door reinforcement plates, replacement cylinder, compatible strike, wireless gateway and installation labour are excluded.
The supplied mortise is not interchangeable with a conventional one. An incorrect spindle length can prevent the clutch from engaging, while a mismatched case can leave the latch partly withdrawn. Without a reinforcement plate, fixing screws can pull through a weak door and shift the escutcheons.
Request these quotation line items:
- Complete hardware list, including mortise, strike, spindle and escutcheons
- Battery pack, RFID cards or tags, emergency keys and concealed cylinder
- Installation template and door modification, including reinforcement
- Credential enrolment, commissioning and operating demonstration
- Future wireless-gateway setup, priced separately from Bluetooth operation
Which door measurements and door types determine compatibility?
Measure the shutter and frame before choosing a digital door lock handle in Pune. Record door thickness, backset, mortise-case height and depth, spindle position, and the centre-to-centre distance from handle spindle to cylinder or auxiliary lock. Also measure frame depth and clearance around the handle, escutcheon, keyway and thumb-turn.
- Confirm left-hand or right-hand handing, based on the hinge side when viewed from the opening side.
- State whether the door opens inward or outward, and whether it is a single or meeting pair of double doors.
- Check sagging, weather-seal compression, architraves, security grilles and nearby furniture; these can stop latching, opening or emergency-key access.
- Sliding doors usually need a hook-bolt or mortise body with a matching jamb strike, not a standard lever mortise.
| Door type | Compatibility check | What can go wrong |
|---|---|---|
| Solid timber or engineered wood | Verify thickness and mortise dimensions | Thin sections can split around screws |
| Laminate-faced or veneer-faced | Use a strong core and local blocking | The finish cannot carry handle loads |
| Metal door | Match lock case, reinforcement and frame depth | Incorrect fixing leaves a loose escutcheon |
| Glass door | Use a glass-rated clamp or patch-lock system | A timber mortise solution will not fit |
| Fire-rated door | Approve the complete tested leaf, frame, hinges, closer and lock | An unlisted replacement can void performance |
| Existing mortise | Match case height, depth, backset, spindle and cylinder centres | An existing opening helps only when every centre aligns |
| Hollow-core or weakly blocked | Add reinforcement around mortise, strike and screw zones | Movement causes misalignment and premature failure |
An existing mortise or decorative finish cannot compensate for incompatible geometry. Double doors also need the inactive leaf, astragal and strike arrangement checked before ordering.
Which access modes, users and credentials are part of the system?
Do not treat “premium” in premium digital lock handles in Pune as a security grade. Compare the actual access functions, credential limits and management controls instead.
| Mode | Confirm | Practical use |
|---|---|---|
| PIN code | User-code count, length and auto-lock behaviour | Residents, office staff and contractors |
| Fingerprint | Storage capacity and recognition conditions | Keyless daily entry |
| RFID or NFC card/tag | Card format, enrolment limit and deletion process | Children, staff and domestic workers |
| Mechanical key override | Key count, cylinder location and duplication policy | Emergency backup |
| Smartphone and Bluetooth | App support and local phone range | Nearby unlocking |
| Wi-Fi | Separate gateway, network requirement and remote control | Unlocking while away from the door |
| One-time password | Validity period and issue method | Temporary contractors |
| Passage mode | Who can enable it and how it ends | Offices or deliveries |
| Administrator credential | Master-code reset and user permissions | Facility or household management |
Bluetooth works only within the phone’s local range. Remote unlocking requires a network connection and a compatible Wi-Fi gateway, which may not be included.
Ask how many fingerprints the lock stores, whether each user can enrol multiple fingers, and how an administrator adds or deletes users. Check whether audit logs record entries, how long event history remains, and how the master code is reset.
Test wet, dusty, worn and injured fingers; give children, elderly residents and anyone with poor recognition a PIN, card or key as a second credential.
- Credential limits and enrolment procedure
- Event-history behaviour and administrator controls
- Spare mechanical keys
- Factory-reset and master-code instructions
What happens when the batteries are low or completely flat?
Do not wait for the first failed unlock. For digital lock hardware in Pune, obtain the battery specification in writing: chemistry, size, quantity, whether cells are included, and the expected service interval at your stated daily usage. Confirm whether the battery compartment opens from the room side without removing the outside escutcheon.
1. Check the low-battery warning before installation. It may be an audible tone, flashing indicator, app notification or keypad message. Ask for the warning lead time and test it with the actual batteries fitted.
2. Identify the external emergency-power interface, such as a USB socket or 9-volt contact points. With the door locked, connect the specified temporary power source, wake the lock, enter an authorised PIN, card or fingerprint, and open the door; then replace all cells with the correct type. A key override may replace this sequence.
3. Test the already-unlocked condition separately. Some models stay mechanically released, while others relock when power returns; the result depends on the model, deadbolt position and installation. A flat battery must not trap an occupant.
4. Fit the escutcheon, then reach the concealed cylinder or mechanical override key with the door closed. Check clearance behind a security grille, beside the frame and under the architrave.
5. Operate the inside thumb-turn on inward- and outward-opening doors. It must release the latch without striking a closer, wall, grille or furniture. For fire-rated or escape-route doors, verify the tested leaf, frame, hinges, closer, strike, lock and egress mode; an electronic handle alone is not approval.
How should the Pune quotation separate hardware, installation and support?
Reject any Pune quotation that combines the lock price, door work and after-sales support into one figure. Compare it as three scopes:
| Scope | Require separate line items |
|---|---|
| Hardware | Lock assembly, proprietary mortise, strike and box, batteries, cards, mechanical keys, reinforcement plates, replacement cylinders and gateway |
| Installation | Mortising, drilling, concealed cable routing, veneer or laminate patching, alignment, commissioning and credential enrolment |
| Support | Warranty terms, gateway setup, administrator changes, battery service and fault response |
Ask the installer to demonstrate the unit on the actual door. Test auto-locking, passage mode, emergency power, mechanical override, low-battery warning and inside release before signing off a digital lock handle set in Pune.
For an exterior door, check the complete unit’s ingress-protection rating, operating-temperature range and corrosion-resistance specification. A plated handle proves none of these; Pune monsoon exposure can damage electronics behind an attractive finish.
For a fire-rated door, demand documentation covering the complete leaf, frame, hinges, closer, lock and access-control mode. A replacement mortise or deadlocking setting can invalidate the tested assembly.
The same comparison applies when reviewing premium digital lock handles in Pune or other digital lock hardware in Pune: price the complete installation, not the handle alone. National Veneer & Ply becomes relevant when veneer, plywood, architectural panels or reinforcement meet electronic hardware; ask whether it will coordinate substrate, hardware dimensions and installation scope.
Before handover, obtain:
- Warranty exclusions and support contacts
- Spare keys and battery-replacement instructions
- Administrator enrolment, reset and factory-reset procedures
- Support terms after a tenant or facility manager changes
Related product
 | HardWare Premium Digital Lock & Handels SecureGuard Pro Digital Lock & Handles Set Key Features: Advanced Biometric Access: Unlock your door with the touch of a finger using... View product → |
Frequently asked questions
What should a digital lock handle set in Pune include?
A mortise-type set normally includes the exterior and interior handles, escutcheons, lock body or mortise, strike plate, strike box, spindle, mounting screws, batteries, installation template and emergency-opening provision. Confirm whether batteries, replacement parts and installation are included in the quoted package.
Which door measurements determine digital lock compatibility?
Check the door thickness, backset, edge-bore position, lock-body dimensions, handle handing and clearance around the frame. Also identify whether the door is wooden, metal, glass, single-leaf, double-leaf, inward-opening or outward-opening before selecting a lock.
Which access modes and credentials can a digital door lock handle support?
Depending on the model, access can use PIN codes, fingerprints, RFID cards, mechanical keys, mobile apps or remote credentials. Ask for the maximum stored users, administrator accounts, temporary codes, audit records and credential-deletion process.
What happens when digital lock batteries are low or flat?
A low-battery warning gives you time to replace the batteries. With completely flat batteries, use the model’s external emergency power connection, mechanical key override or other stated emergency-opening method; confirm the location and battery type before installation.
How should a Pune quotation separate digital lock hardware, installation and support?
Request separate lines for the lock set, mortise or replacement parts, batteries, installation, door modification, travel, taxes, warranty, software access and after-sales support. Ask who handles alignment problems, failed credentials, battery replacement and emergency visits.
